anco wiper arm 41-03

Payment Type:	L/C,T/T
Terms of Trade:	FOB
Min. Order:	50 Piece/Pieces
Delivery Time:	25 Days

Packaging:	Neutral Packing
Productivity:	50000
Brand:	CAP
Transportation:	Ocean,Air
Place of Origin:	HANGZHOU CHINA
Supply Ability:	500000
Certificate:	ISO9001
HS Code:	8512900000
Port:	NINGBO,SHANGHAI

Contact Now

Basic Info

Model No.: CAP101178

Product Description

Wiper Linkage > One-way Scraping Wiper Linkage > anco wiper arm 41-03

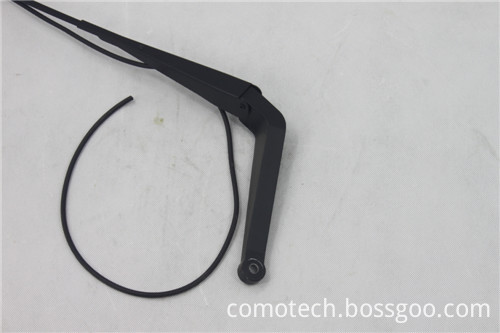

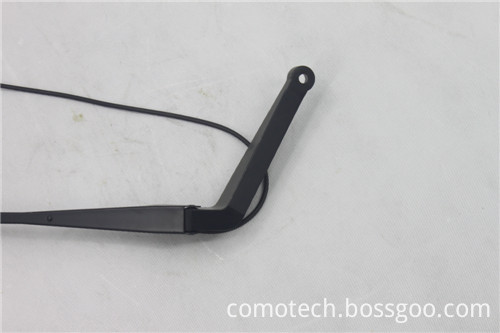

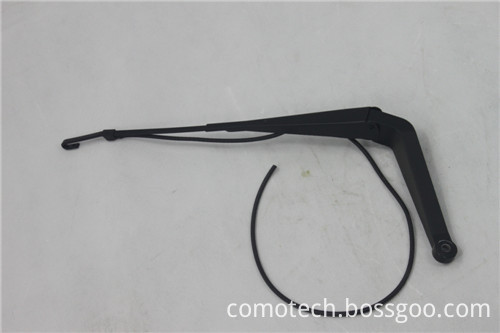

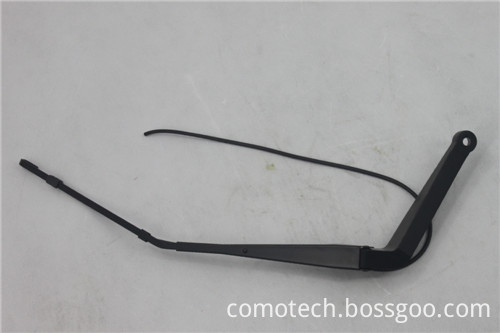

Wiper Arm: this is a rain scraping ARM of a Canadian school bus. In order to meet the requirements of the front cover plate, a special scraping ARM joint is developed. Its length is up to 210mm.The connection with the brush is a hook connection with a washer nozzle.The pressure of the scraper is 10N.Surface is spray black plastic powder, reflective rate 20%-30%, uv - resistant, scratch resistant.

Mounting hole size: C16 x M10 sweep radius: 625mm

Tick size: 9 x 4

Standard Duty Wiper Arms

Meets or exceeds FMVSS and SAE standards
Channel is made of UV stabilized composite; extension is powder coated stainless steel; mounting head is cast aluminum; matte black finish; tension spring is stainless steel
Compatible with tapered knurl, 1/2" drum with lever, 1/2" drum with set screw, M6 DIN, and M8 DIN pivot shafts
9x4 mm hookslot (standard) or 14 mm saddle-type blade attachment
Optional wet kit features internal through-channel hose routing, choice of spray nozzle (channel-mounted one-jet, three-jet, or six-jet), and optional check valve

COMOTECH ASIA PACIFIC (HANGZHOU)CO.,LTD

Hangzhou Comotech Asia Pacific co., LTD. Is a French COMOTECH group established a joint venture with hangzhou WANRAY in 2013, the joint venture company, located in xiaoshan district of hangzhou, r&d, production, sales and service into an organic whole, is the world's OE wiper professional supplier of systems and components, products are mainly used in trucks, commercial vehicles, buses, special vehicles, trains and cruises, etc.Customers are in France, Germany, Britain, Italy, the United States, Canada and other countries.
Using CATIA, Solidworks, pro-e, Cimatron and other software to design and analyze products and molds, the company has passed the ISO9001 quality system certification and is importing the ISO/TS16949 quality management system.
Adhering to the management philosophy of "taking technology as the lead, quality for survival and management for development", ke mutai company will keep innovating, improving and providing customers with quality products and services.
